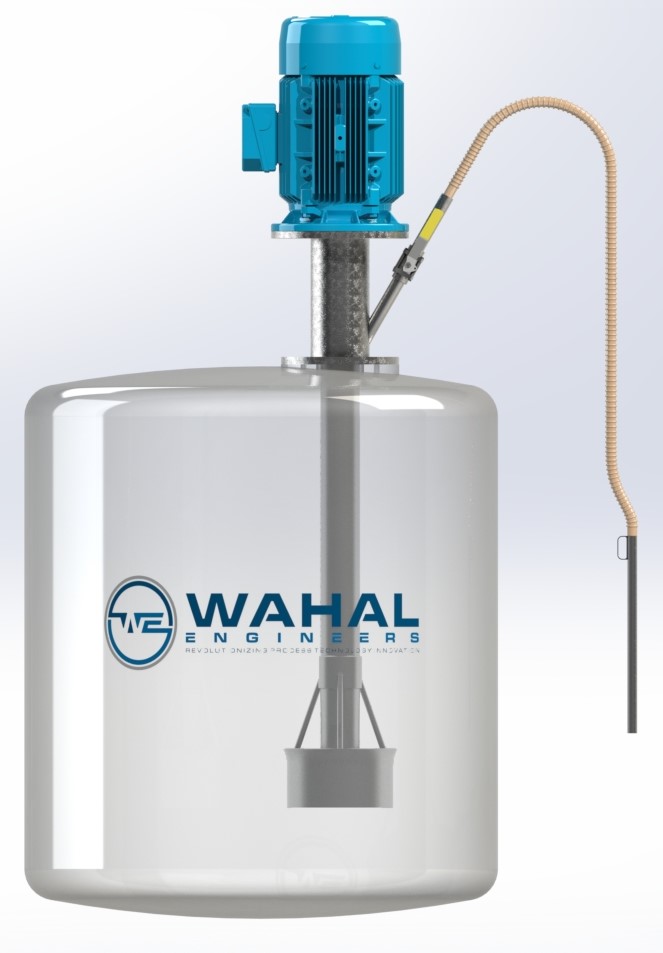

Inline Powder disperser

Name: Inline Powder disperser
Brand: WAHAL PROCESS TECHNOLOGIES PRIVATE LIMITED
Price: 1000000.0 INR
Availability: InStock

Price 1000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Inline Powder disperser Specification

Type
Inline Powder Disperser

Material
Stainless Steel (SS304 / SS316 as per requirement)

Capacity
50 LPH to 50,000 LPH (customizable)

Computerized
No

Automatic Grade
Automatic

Voltage
220V/380V/415V (customized as per requirement)

Frequency (MHz)
50 Hz / 60 Hz

Size
Customizable as per process need

Width
Depends on model

Weight
Depends on capacity and model

Dimension (L*W*H)
As per tank and disperser design

Powder Feeding
Hopper with venturi-based suction or automatic screw feeder

Temperature Range
Up to 120C (for process liquid)

Motor Power
3 HP to 75 HP (as per process requirement)

Operator Interface
Manual / Optional PLC panel integration

Surface Finish
Mirror polish inside, matt finish outside (customizable)

Safety Features
Overload protection, Interlock arrangement

Application
Dispersion of powder into liquid for food, pharma, cosmetics, chemicals, coatings, adhesives, etc.

Mounting Type
Inline, Mounted on Mixing Tank/Liquid vessel

Mixing Principle
High Shear Inline Dispersion with Suction Mechanism

Powder Suction Capacity
Up to 500 kg/hour depending on model and application

Noise Level
Below 85 dB(A)

Sanitary Design
CIP/SIP capable

Shaft Seal
Mechanical Seal, Single / Double as required

Inline Powder disperser Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit at Sight (Sight L/C)

Sample Available
No

Packaging Details
wooden box

Main Export Market(s)
Middle East, Africa

Main Domestic Market
All India

Certifications
CE, ISO

About Inline Powder disperser

Continuous liquid powder disperser s/ high shear powder induction mixers

- for water based paint, paper coatings, pigments, inks, food and cosmetics

- powder feeding via jumbo bags, silos and/or hopper / bag tipping stations.

- Controllable powder flowrates

- High viscosity slurry handling

- ATEX motors

- Turnkey solutions available as well

Optimized High Shear Mixing

Experience efficient powder-to-liquid dispersion through high-shear inline processing, enabling uniform mixing and reduced process times. The integrated suction mechanism draws powders directly into the liquid stream, ensuring minimal clumping and swift dissolution, critical in food, pharma, and cosmetic applications.

Customizable Capacity and Versatility

With capacities ranging from 50 LPH to 50,000 LPH and powder handling up to 500 kg/hr, each unit is tailored to your specific process requirements. Suitable for liquids up to 120C and supporting automatic or manual interfaces, this disperser adapts effortlessly to various applications and industry standards.

FAQ's of Inline Powder disperser:

Q: How does the inline powder disperser incorporate powders into liquids efficiently?

A: The disperser uses a high shear rotor-stator system with a suction mechanism that draws powders directly into the liquid stream, ensuring uniform mixing and rapid dispersion without agglomeration. This process greatly improves solubility and consistency in the final product.

Q: What industries commonly use this inline powder disperser?

A: Industries such as food processing, pharmaceuticals, cosmetics, chemicals, coatings, and adhesives widely use this disperser for incorporating various powders into liquid formulations, meeting stringent sanitary and process quality standards.

Q: When should I opt for automated powder feeding with a screw feeder instead of a hopper?

A: Automated screw feeders are ideal when precise, continuous, or large-volume powder feeding is required. For batch processes, or when handling powders that flow easily, a venturi-based hopper is often sufficient. The choice depends on your process scale and powder characteristics.

Q: Where can this disperser be installed in my production setup?

A: It is designed for inline mounting on mixing tanks or liquid vessels, easily integrating into existing production lines with minimal modifications. The compact, customizable design ensures compatibility with most plant layouts.

Q: What are the primary benefits of using an inline powder disperser?

A: Key advantages include rapid and thorough powder incorporation, reduced mixing times, improved product homogeneity, reduced operator exposure to dust, and streamlined cleaning with CIP/SIP compatibility. These features enhance productivity, safety, and product quality.

Q: How is operator safety ensured during disperser operation?

A: The machine is equipped with overload protection, interlock arrangements, and a robust mechanical seal. Operator interfaces can be either manual or enhanced with PLC integration for safe, automated, and user-friendly operation.

Q: What factors determine the choice between SS304 and SS316 stainless steel construction?

A: The selection depends on the chemical resistance needed for your process. SS304 suits general applications, while SS316 is recommended for processes involving corrosive chemicals or high-hygiene requirements, such as in pharma or food applications.
